| SIZE IN MM | WEIGHT IN KGS. / PER FEET | WEIGHT IN KGS. / PER MTR. |
|---|---|---|
| 100x50 | 2.1 | 7.979 |
| 125x70 | 3.8 | 13.199 |
| 150x75 | 4.56 | 14.997 |
| 175х85 | 5.928 | 19.499 |
| 200 × 100 | 7.873 | 25.897 |
| 225 × 110 | 9.667 | 31.31 |
| 250 х 125 | 11.582 | 38.099 |
| 300 × 140 | 13.71 | 48.5 |
| 350x140 | 16.081 | 52.906 |
| 400 × 140 | 19.03 | 62.601 |
| 450 x 150 | 22.222 | 73.1 |
| 500 × 180 | 26.66 | 87.7 |
| 600 x 210 | 37.544 | 122.6 |

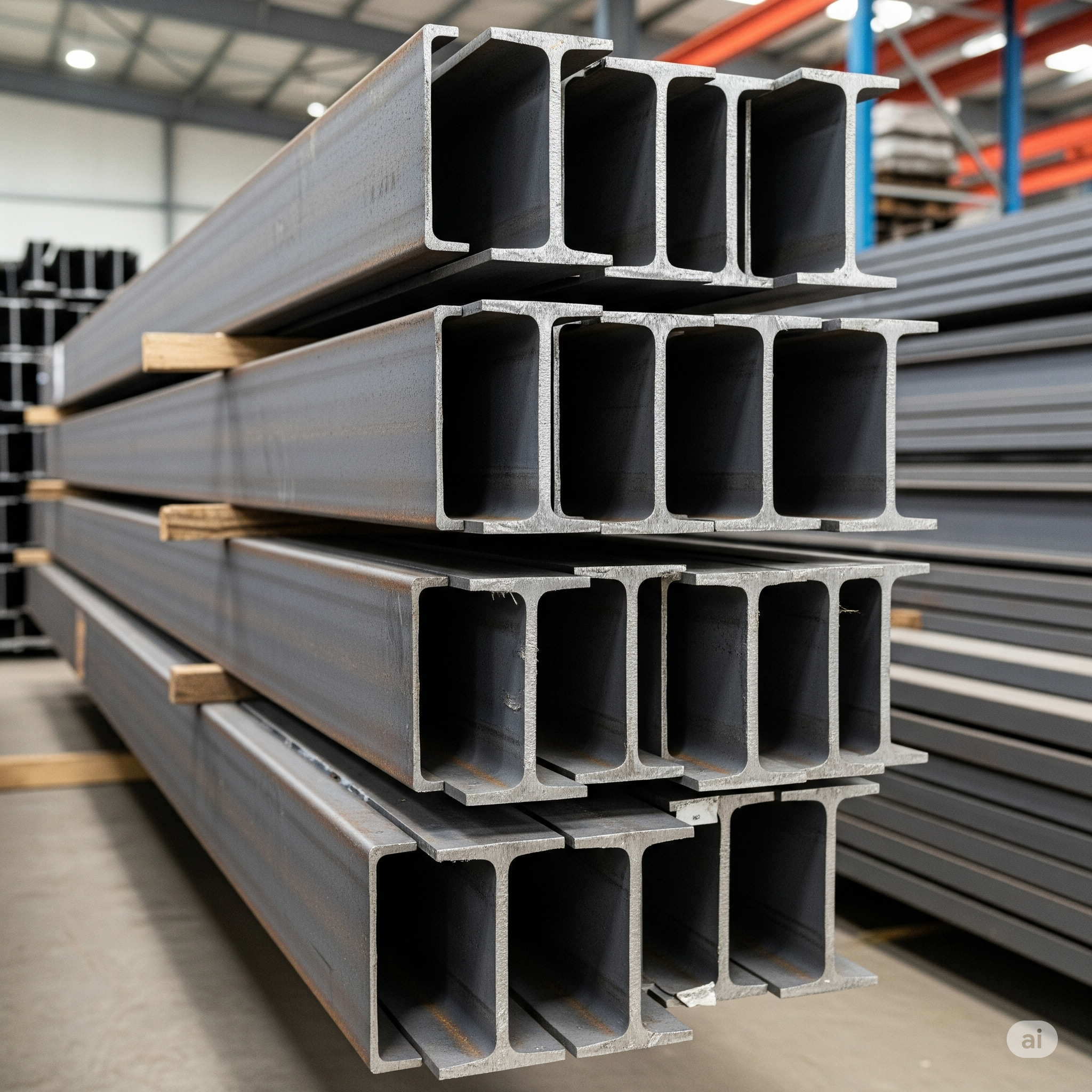

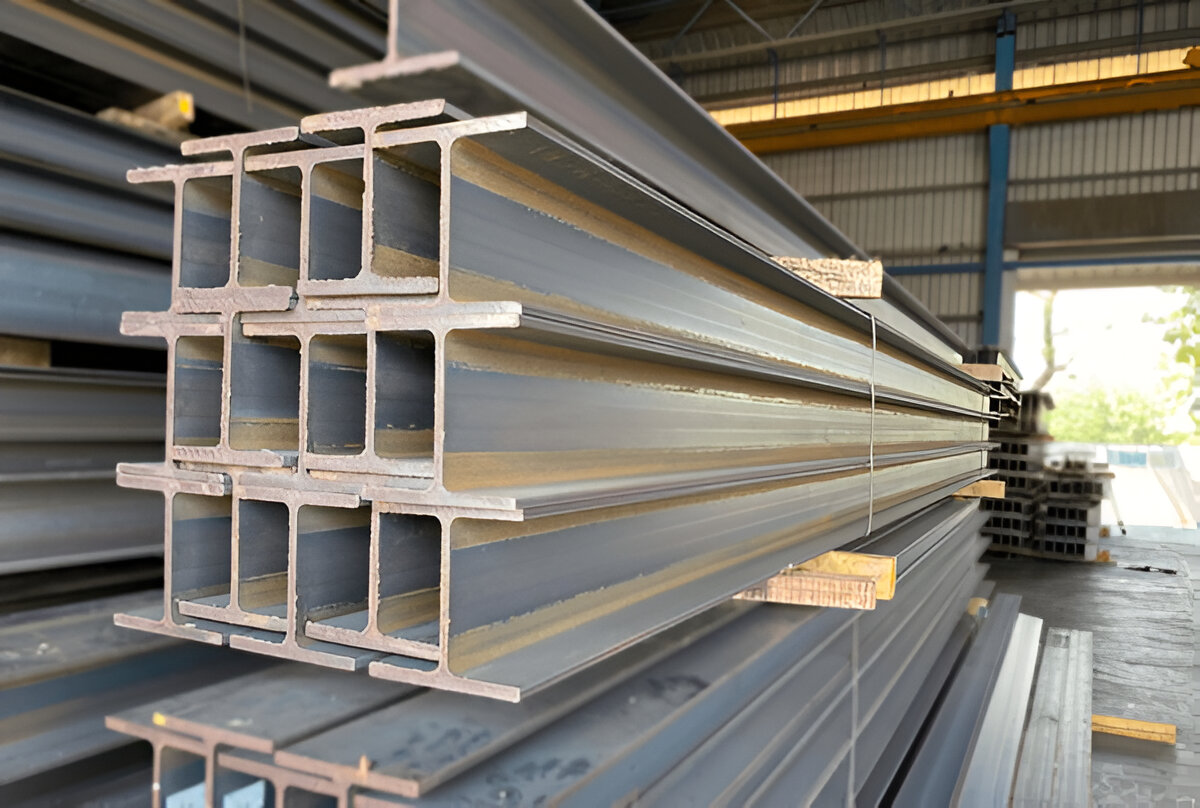

MS H BEAM
Essential for heavy-duty construction like bridges, flyovers, and load-bearing building structures.
Mild Steel H Beams (MS H Beams) are premium structural steel members crafted in a wide-flanged “H” profile for maximum strength distribution. They deliver superior resistance against bending, making them suitable for high-rise construction, infrastructure development, and industrial engineering applications.
Made from high-quality mild steel, these beams offer:
-
Excellent structural rigidity
-
High tensile and compressive strength
-
Uniform load distribution
-
Great weldability and fabrication flexibility
Common Applications:
-
High-rise buildings & large construction projects
-
Bridges & flyovers
-
Industrial sheds & warehouses
-
Heavy machinery structures
-
Support columns & platforms
Available in various sizes and weights as per international standards (IS / EN / ASTM).
