| SIZE IN MM | WEIGHT IN KGS. / PER FEET | WEIGHT IN KGS. / PER MTR. |
|---|---|---|
| 20 × 20 x 3 | 0.274 | 0.899 |
| 25 × 25 x 3 | 0.335 | 1.099 |
| 32x 32 x 3 | 0.486 | 1.595 |
| 40x 40 x 3 | 0.548 | 1.998 |
| 50 x 50 x 3 | 0.425 | 2.32 |
| 25x 25 x 5 | 0.548 | 1.798 |
| 35 × 35 x 5 | 0.795 | 2.62 |
| 40 × 40 x 5 | 0.915 | 3.002 |
| 40 × 40 x 6 | 1.066 | 3.498 |
| 50 x 50 x 5 | 1.158 | 3.8 |
| 65 x 65 x 5 | 1.488 | 4.883 |
| 32 x 32 x 6 | 0.912 | 2.992 |
| 50 x 50 x 6 | 1.372 | 4.5 |
| 60 x 60 x 6 | 1.645 | 5.397 |
| 65 х 65 x 6 | 1.767 | 5.798 |
| 75 x 75 x 6 | 2.072 | 6.798 |
| 80 x 80 x 6 | 2.224 | 7.297 |
| 90 x 90 x 6 | 2.499 | 8.199 |
| 100 x 100 x 6 | 2.804 | 9.2 |
| 65 x 65 x 8 | 2.346 | 7.697 |
| 75 x 75 x 8 | 2.712 | 8.898 |
| 80 x 80 x 8 | 2.925 | 9.597 |
| 90 x 90 x 8 | 3.292 | 10.801 |
| 100 x 100 x 8 | 3.687 | 12.097 |
| 65 × 65 x 10 | 2.864 | 9.397 |
| 75 x 75 × 10 | 3.352 | 10.998 |
| 90 x 90 x 10 | 4.084 | 13.4 |
| 100 x 100 x 10 | 4.545 | 14.912 |
| 125 x 125 x 10 | 5.984 | 19.63 |
| 130 x 130 x 10 | 6.004 | 19.63 |
| 150 × 150 × 10 | 6.95 | 22.803 |
| 80 x 80 × 12 | 4.265 | 14.1 |
| 90 x 90 x 12 | 4.815 | 15.81 |
| 100 x 100 x 12 | 5.028 | 16.497 |
| 110 х 110 x 12 | 5.395 | 17.701 |
| 130 х 130 x 12 | 7.132 | 23.4 |
| 150 x 150 x 12 | 8.29 | 27.199 |
| 150 х 150 x 16 | 10.911 | 35.799 |
| 150 × 150 x 20 | 13.441 | 44.1 |
MS ANGLES

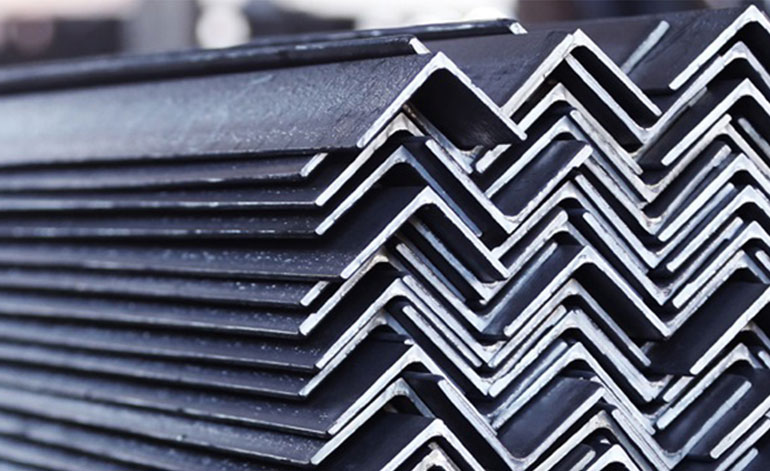

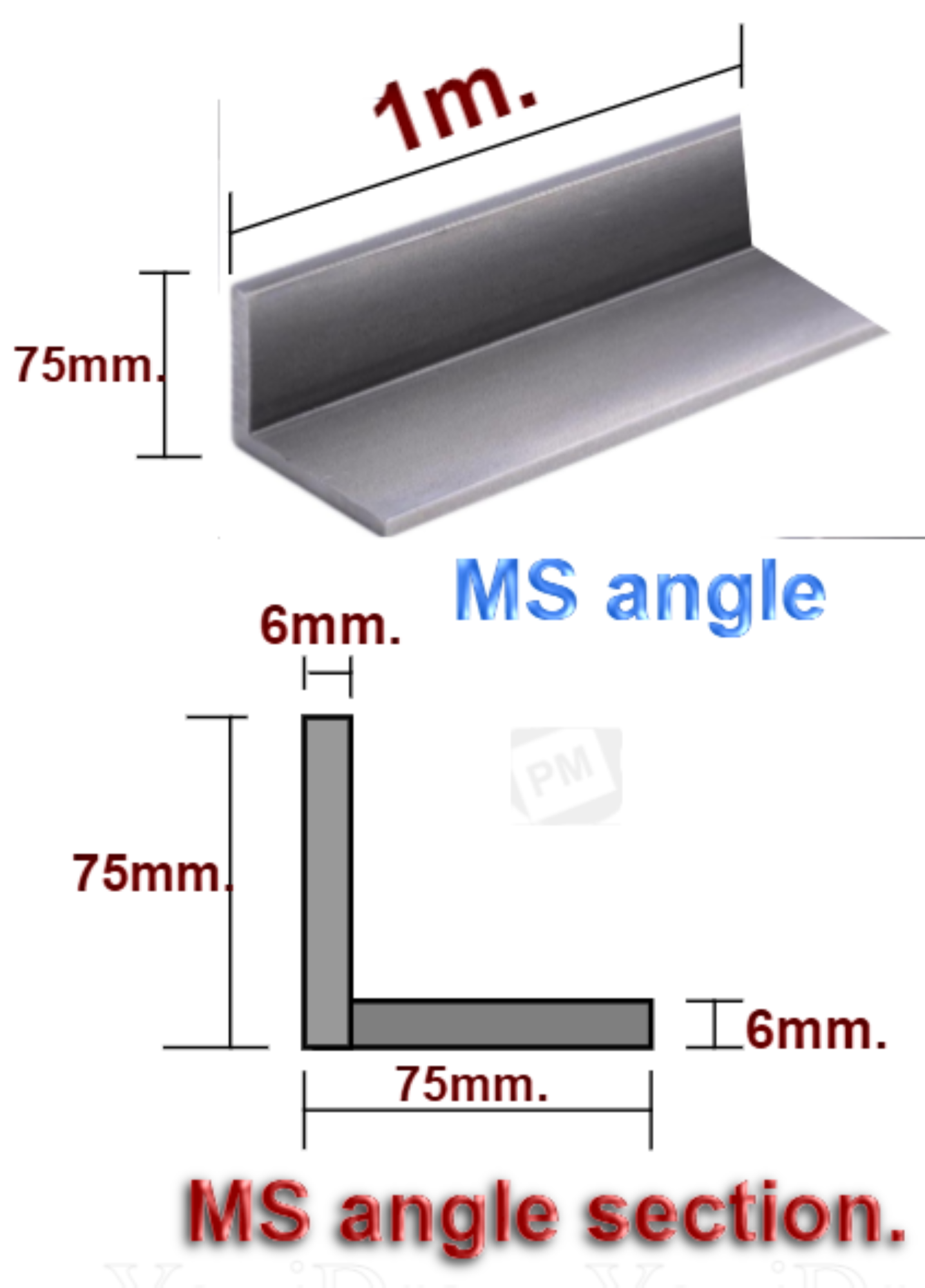

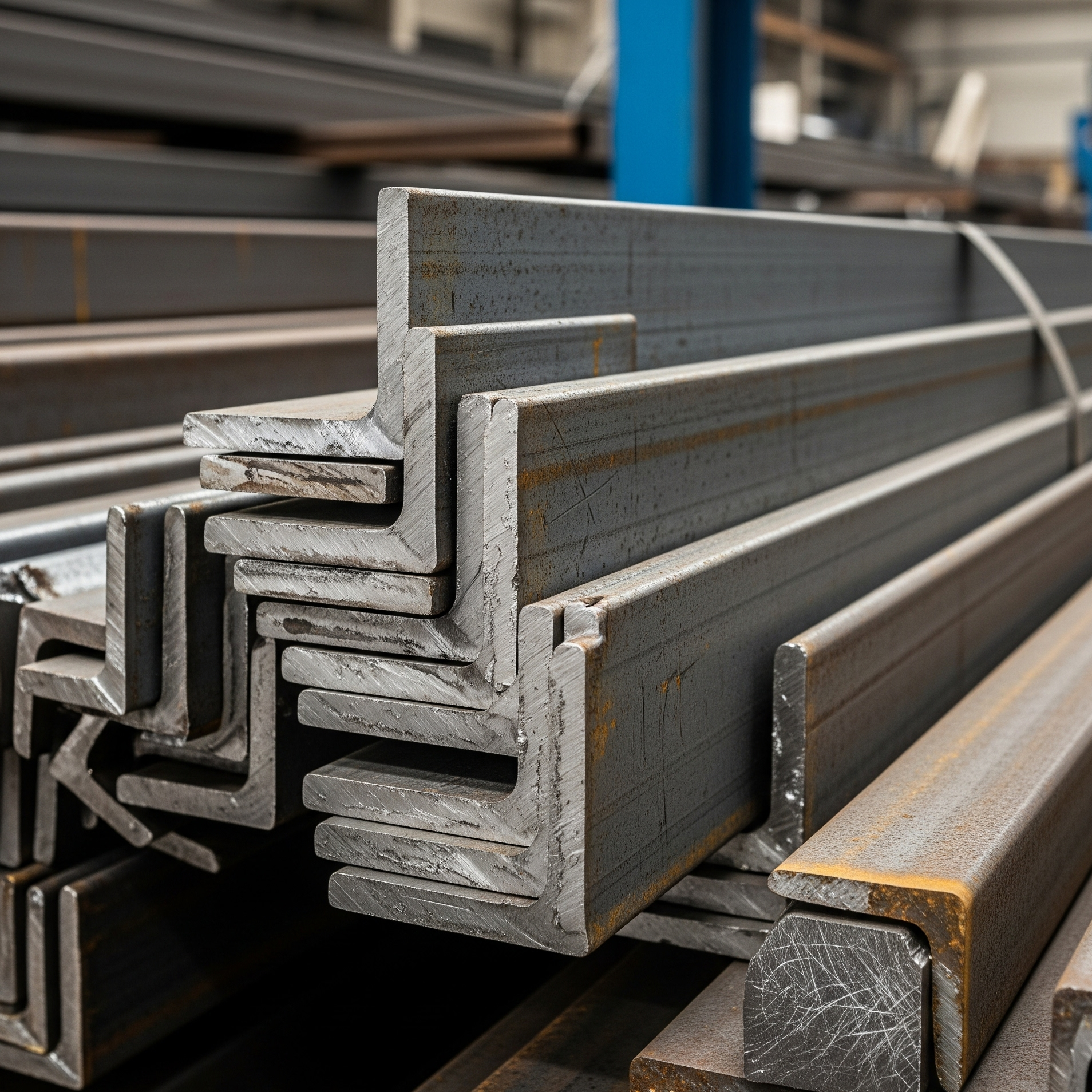

Mild Steel Angles (MS Angles) are versatile structural steel components manufactured in an “L” shape to provide rigid support and strong load-bearing capacity in various construction and fabrication applications.
Made from high-quality mild steel, these angles offer excellent weldability, bendability, and long-lasting structural stability. They are commonly used in steel structures, industrial sheds, bridges, equipment frames, and general engineering projects.
Primary Applications:
-
Building & Construction Frameworks
-
Support Beams & Columns
-
Steel Bridges & Towers
-
Equipment & Rack Manufacturing
-
Trusses, Fabrication & Reinforcement Work
MS Angles are available in a range of sizes, thicknesses, and equal/unequal configurations as per customer requirements and industry standards.
