| SIZE IN MM | WEIGHT IN KGS. / PER FEET | WEIGHT IN KGS. / PER MTR. |
|---|---|---|
| 75 x40 | 2.2 | 7.216 |
| 100 x 50 | 2.918 | 9.597 |
| 125 × 65 | 3.982 | 13.098 |
| 150 × 75 | 5.107 | 16.799 |
| 175 × 75 | 5.958 | 19.597 |
| 200 × 75 | 6.78 | 22.3 |
| 250 × 80 | 9.302 | 30.599 |
| 200 x 90 | 11.035 | 36.298 |
| 400 x100 | 15.27 | 50.31 |

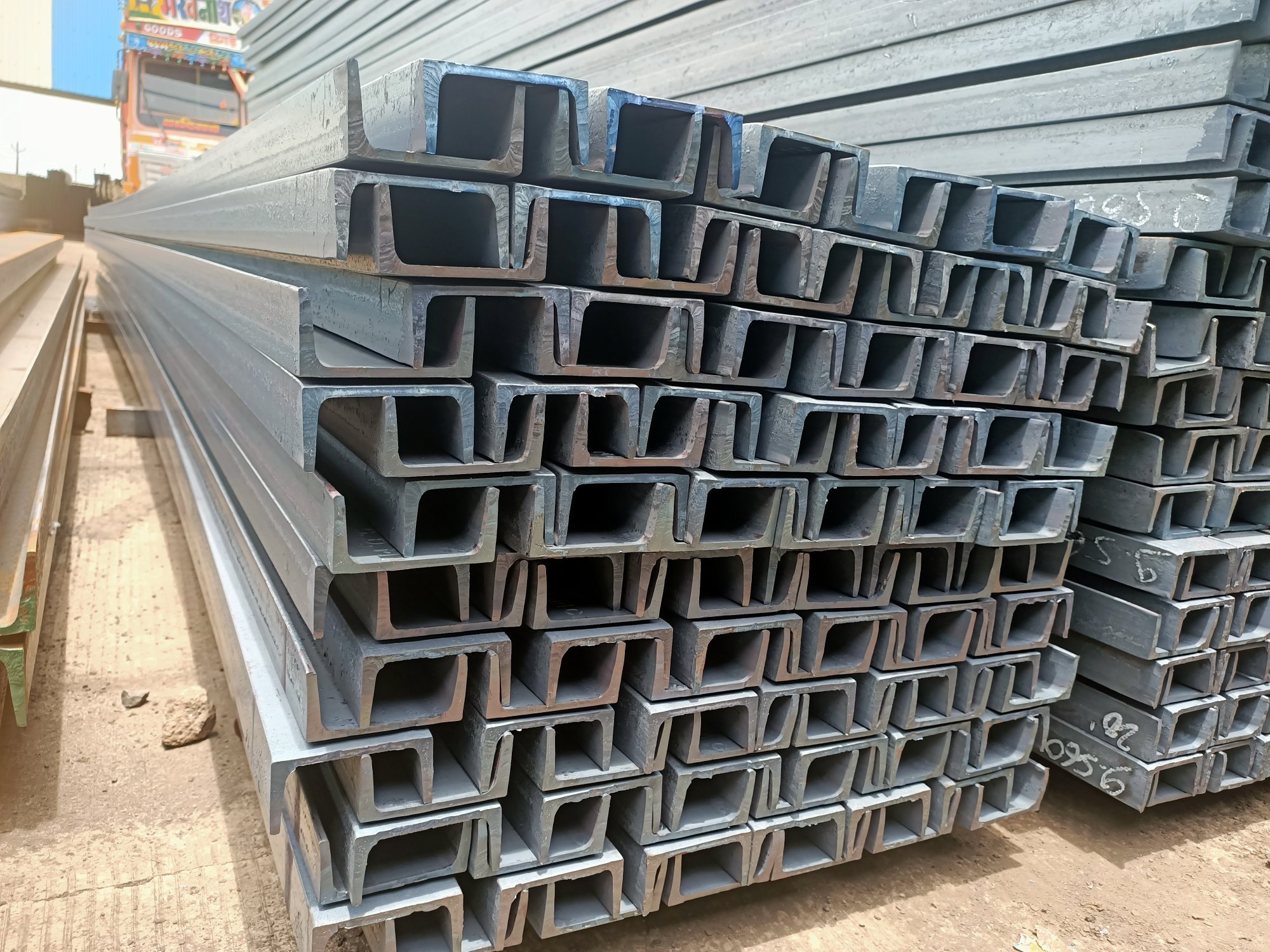

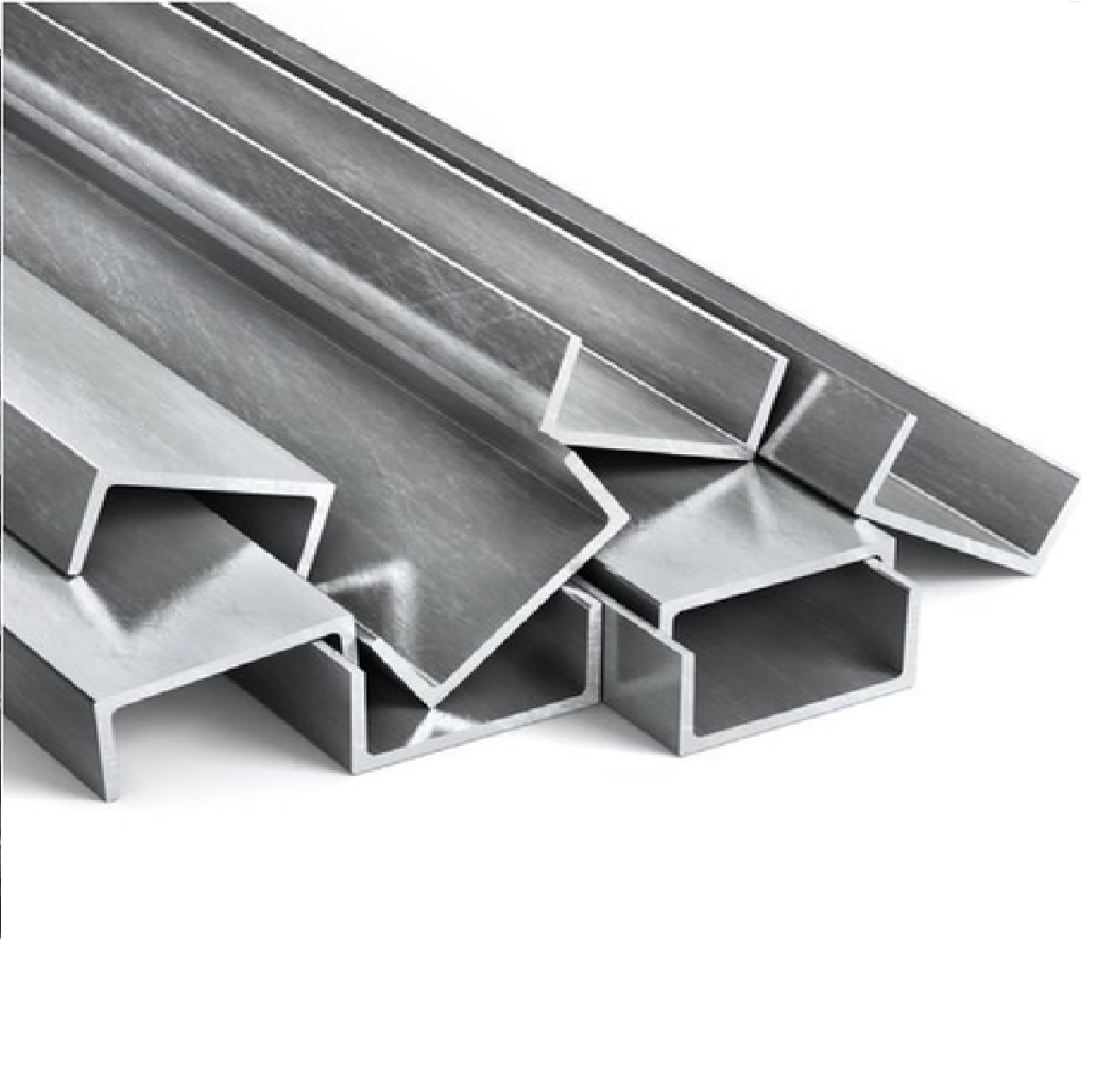

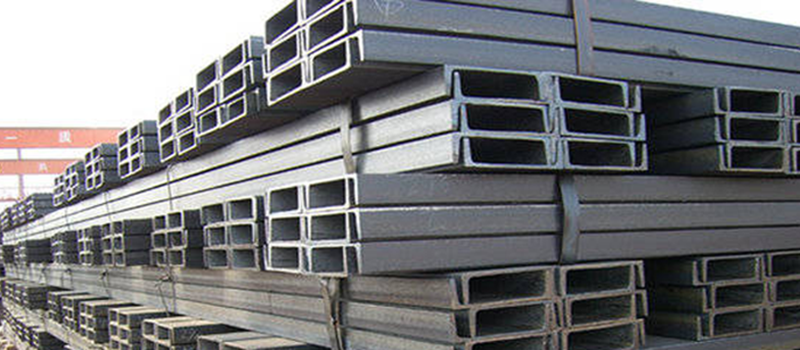

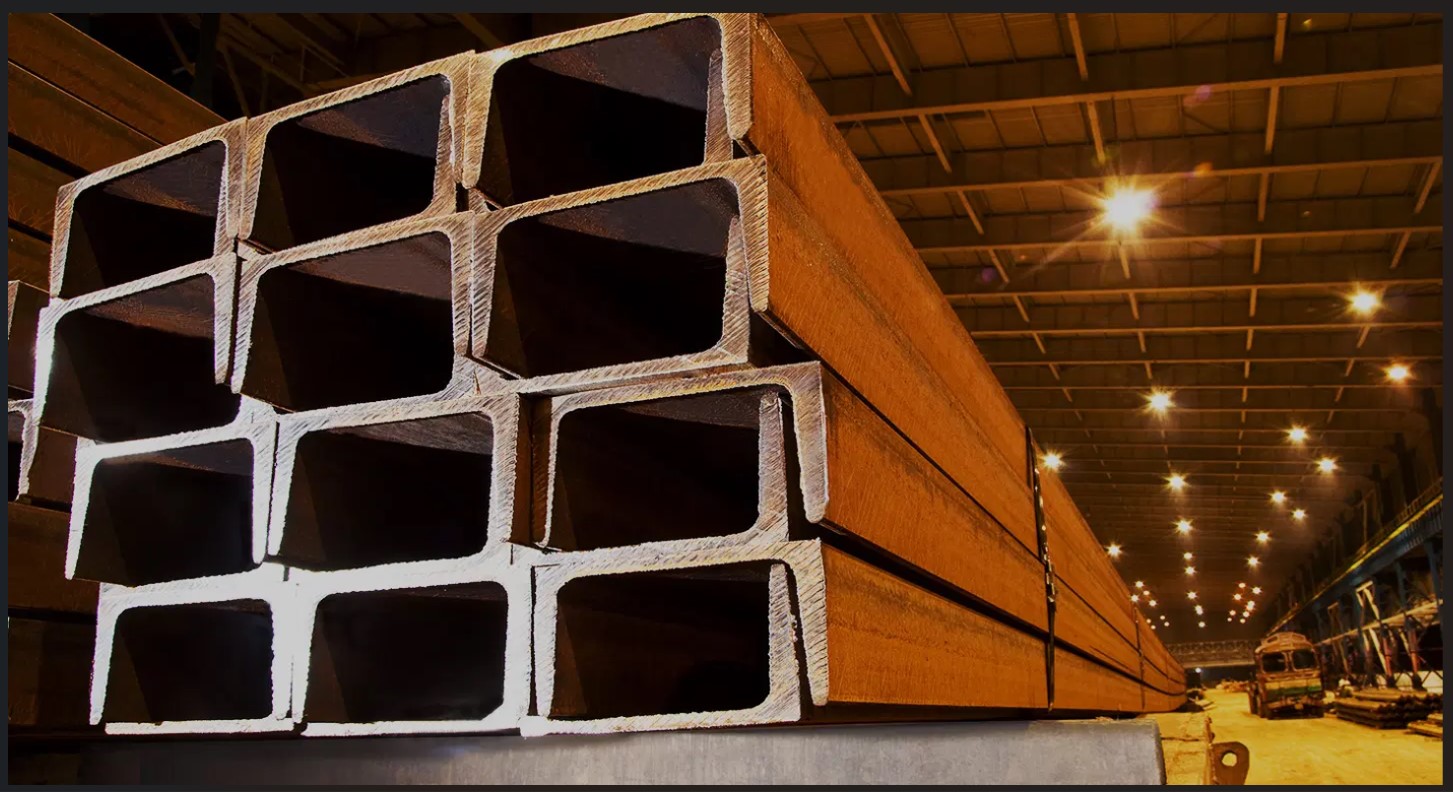

MS CHANNELS
Mild Steel Channels (MS Channels) are C-profiled structural steel components designed to deliver exceptional strength and rigidity for industrial and commercial construction projects. Their robust shape ensures enhanced load distribution, making them suitable for heavy-duty applications.
Manufactured from high-quality mild steel, these channels offer excellent machinability, weldability, and anti-deformation performance, enabling usage in multiple fabrication and infrastructure works.
Major Applications:
-
Building structures & support frames
-
Roof trusses, sheds & platforms
-
Machinery & vehicle chassis fabrication
-
Bridges, tower structures & reinforcement
-
Conveyor systems & industrial frameworks
Available in multiple sizes (ISMC), standard lengths, customized cutting options, and various grades as per customer needs.
